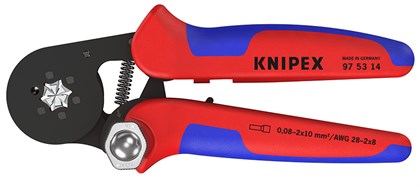

97 53 14 - Self-Adjusting Crimping Pliers
Click and drag on the image to view 360 degrees!
Tools
Reliable hexagonal crimping of wire ferrules from 0.08 to 16mm² (AWG 6) by simply turning and setting the adjusting wheel and all twin wire ferrules up to 2 x 10mm² (AWG 2 x 8)
Automatic adaptation via self-adjustment to the wire ferrule size for precise and quick crimping
Crimping pressure calibrated in the factory for precise crimping
Optimum transmission of force due to toggle lever for fatigue-reduced operation
Ergonomic and comfortable handle, smooth operation and lightweight
Crimping of wire ferrules according to DIN 46228 parts 1+4
ATTRIBUTES
Application
End Sleeves (ferrules)
AWG
6 / 2 x 8
Capacity
Wire ferrules 0.08 - 16mm² / Twin wire ferrules 2 x 10mm²
Description - Short
Next level crimping. Now with greater crimping capacity: easy crimping of wire ferrules up to 16mm² or twin wire ferrules up to 2 x 10mm²
Handle
with multi-component grips
Length
180mm
Pliers
Burnished
Weight
416g
